PillCam: Swallowing a Camera to See Inside Your Body

The PillCam is a swallowable camera capsule used to non-invasively diagnose gastrointestinal conditions. It captures thousands of images inside your body, offering a comfortable and effective alternative to traditional endoscopy.

SK

Written by Sumit Kaushik

09 Jun 2025
3 min
PillCam: Swallowing a Camera to See Inside Your Body

Imagine being diagnosed with potentially life-threatening gastrointestinal conditions without an incision, hospitalization, or even a needle. The answer? Swallowing a pill—a capsule no thicker than a vitamin supplement. It's PillCam, and the state-of-the-art technology is revolutionizing the way physicians visualize the digestive tract. It's intelligent, painless, wireless—and it's saving lives.



What is a PillCam

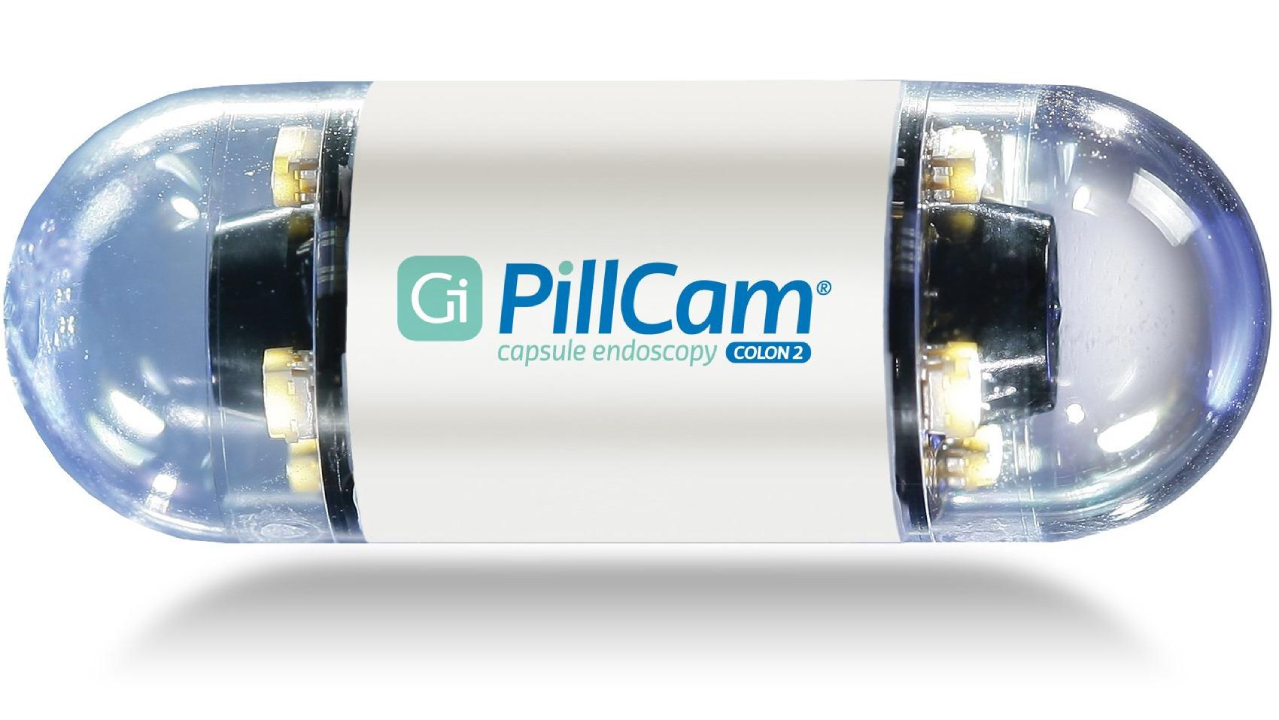

PillCam is an endoscope capsule, a device used to photograph the digestive system in high definition. A jellybean-sized (about 11mm x 26mm) item, it is comprised of:



  • A small video camera
  • Light-emitting diodes (LEDs)
  • A transmitter
  • An 8–12 hour battery



When ingested, the PillCam takes photos 2 to 6 per second and sends over 50,000 images to a waistband pager on the patient. The images allow gastroenterologists to study parts of the GI tract that are hard to access with traditional means—most notably, the small intestine, which is over 20 feet long and famously hard to investigate.



What Conditions Can It Identify?


PillCam is typically prescribed when other tests failed to yield any result. PillCam diagnoses or monitors:



  • Gastrointestinal bleeding
  • Crohn's disease
  • Celiac disease
  • Polyps and tumors
  • Ulcers of the small intestine
  • Abdominal pain or iron deficiency without apparent cause



In most instances, PillCam offers early diagnosis of all these conditions, which is crucial in an attempt to effectively treat them.



How Is the Procedure Performed?


PillCam procedure is very easy and straightforward:



  1. Preparation: Just as with a colonoscopy, you may need to fast or take a laxative to clear out your GI tract.
  2. Swallowing the Pill: You take water and swallow the PillCam—no hospitalization and no anesthesia.
  3. Wearing a Sensor Device: You wear a vest or belt that captures signals from the capsule as it moves through your system.
  4. Normal Routine: You can go about your normal routine while the PillCam records video inside.
    The capsule comes out routinely in your stool in 24–72 hours.
  5. Data Analysis: The physician examines the pictures for any abnormality or difficulty.



PillCam Benefits


  1. Painless and non-invasive: No tubes, no sedation, and no incisions.
  2. Easy: An outpatient procedure—no work time lost.
  3. Reach the tough spots: Especially the small intestine, which regular scopes can't reach.
  4. In rich detail: Offers rich, color photographs that can spot small abnormalities.
  5. Safe for most patients: FDA approved and utilized everywhere in more than 2 million procedures.



Limitations and Risks


As with any technology, PillCam is not without some limitations:



  1. Can't biopsy: If tissue sampling is needed, a different test must be done.
  2. Capsule retention risk: A rare complication but a risk in patients with obstruction or narrowing of the intestine.
  3. Not all patients: Patients with swallowing disorder, strictures, or pacemakers may be excluded.
  4. Not a replacement: Complementary but not in replacement of colonoscopy or endoscopy for everyone.



The New in PillCam Technology


Recent generation devices such as PillCam SB3 and PillCam COLON 2 provide:



  • Increased frame rates
  • Motion-adaptive imaging
  • Improved battery life
  • Light balancing
  • Optimization to enable greater visual comfort
  • Dual cameras to visualize the colon



Others are being paired with artificial intelligence and machine learning so doctors can quickly locate areas of interest and reduce diagnostic mistakes.



Future Capsule Endoscopy


The PillCam is only the beginning. Future models can provide:


Real-time video
Steerable capsules
Integrated biopsy devices
Remote AI processing
Real-time diagnosis via live cloud streaming


Capsule endoscopy is even being applied to esophageal, colon, and gastric tests nowadays, expanding its use in the clinic.



Last Thoughts


PillCam redefines the diagnostic process—from an invasive, feared procedure to one as straightforward as swallowing a pill. It enriches doctors with precise information and provides patients with a painless, stress-free alternative to conventional GI procedures.



As a patient seeking diagnostic options or a medical professional keeping pace with innovation, PillCam is the future of convenient, smart, and empathetic medicine.
